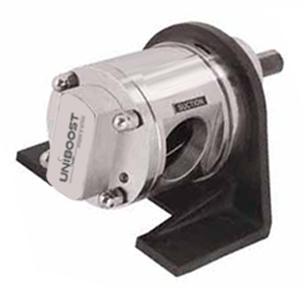

Uni boost gear pump Model “UG SS” which is self priming, foot   mounting type positive displacement rotary gear pump. UGSS having all Stainless Steel (SS-316) in three piece construction with investment cast.Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries.  These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The suction and delivery connection are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 13 LPM to 2050 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity of 1,00,000 SSU and maximum temperature up to 200ºc.

Specification :

Material of Construction

  • Pump Body: CF8M [SS-316]
  • Front Cover: CF8M [SS-316]
  • Back Cover: CF8M [SS-316]
  • Gland Cover: CF8M [SS-316]
  • Packing: Teflon Sheet
  • Sealing: Z Pack/ Mech. Seal
  • Bush Bearings: Teflon Coated "DU”
  • Mounting Bracket: C.I.Gr.-20 IS 210
  • Rotor/Stator Shaft: EN-57/SS-430
  • Key For Coupling: AISI [SS-316]
